Easyroof® is designed to facilitate the installation of single skylights coupled with the most common sandwich panels. The main features are: the system can fit to most common sandwich panels with variable thickness, the good thermal insulation and light transmission, the possibility to create skylights on long sloping roofs (please consider the necessary expansion spaces), the good load resistance, the 10-year warranty against hail, yellowing and loss of light transmission.
Features & Benefits
Features
- Excellent Light transmission
- UV Protection
- Prevents Condensation
- Thermal Insulation
- Acoustic Insulation
- Extreme high impact resistance
Benefits
- Energy Savings
- Recyclable
- Contributes to obtain LEED Credits
Photo Gallery
SPECIALIZED POLYCARBONATE SYSTEMS
Typical applications
- Metal warehouses
- Supermarkets
- Industrial constructions
Selection
| Thickness | Weight (lb/ft2) | Weight (g/m2) | Light transmission crystal | Sound reduction index | Cold forming radius | Colors | ||
|---|---|---|---|---|---|---|---|---|
Easy Roof 30/4W- 4227 (Four walls)  |
 |
30 mm | 0.63 | 3100 | 52% | 21 | 220 in |
Crystal
White
|

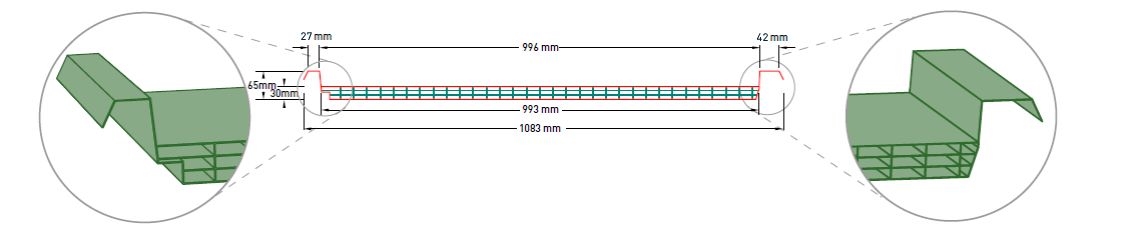

Physical Specification
| Physical Properties | ||
|---|---|---|
| UNIT | VALUE | |
| Width | m | .993 |
| Length | m | to 12.20 |
| Thick | mm | 30 |
| Number of walls | 4 | |
| Weight | kg/m2 | 3.1 |
| Coefficient of solar heat gain | SHGC | 0.36 |
| "U" Values | W/m2 0K | 1.59 |
| Soundproofing | dB | 21 |
| ASTM Impact D-5628-95 J | J | 0.83 |
| Thermal Expansion | mm/m ºC | 0.0654 |
| Working temperature range | ºC | -40 to 120 |
| Bending radius | m | 5.6 |
| Light transmission - Glass - Opaline |
% % |
52 35 |
| UV Protection | One side | |
| Warranty | years | 10 |
Technical Specification
| Maximum distance for supports | ||
|---|---|---|
| Distance between supports | Load | |
| m | Pressure | Suction |
| 1.5 | 2100 Pa | Max. 1400 Pa |
| 1.75 | 1600 Pa | |
| 2 | 1250 Pa | |
| 2.25 | 950 Pa | |
| 2.5 | 750 Pa | |
| Flammability | ||
|---|---|---|
| Test | Classification | |
| ASTM E84-01 | Class A-I (NFPA, UBC) | |
| ASTM E84-01 | Low smoke density (UBC Standard no. 26-5) | |
| ASTM E84-01 | Flame retardant (Classification CC1) | |
| ASTM E84-01 | Meets the standard ignition temperature (UBC standard N. 26-6) | |
